Product Description:
Single Point Type Load Cell For Load Force measurement With High Precision 50kg-500kg - WL-117
The WL-117 is a high precision box type single point load cell. With high precision and easy installation, the load cell is commonly used in electronic balances, electronic weighing platforms for mechanical testing machines, and mechanical test models. In load cell WL-117, many capacities ranging from 50 kg to 500kg are offered. The low temperature coefficient of the WL-117 single point load cell makes it a great option for multi-range applications.The load cell WL-117 boasts a novel structural layout and the nominal displacement of the load cell is 0.6-0.09mm.
Custom design service is available to meet the requirements of various applications. At BRANS, we understand that each application is unique and calls for a customized solution. In order to ensure the highest level of accuracy and reliability, our custom design service enables us to modify our product to meet your specific needs. Our custom design capabilities are designed to deliver the best possible solution for your unique use.
Features:
- Single point load cells
- Made of aluminum alloy
- Load cell capacity range from 50kg to 500kg
- Accuracy class: C3, IP65 protection
- With compact design, easy to install
- Shielded connection cable
- With good consistency of rated output
- Different cable lengths and other options available
- High precision load cell for weighing applications
Technical Parameters:
| Capacity | 50/100/150/200/250/300/400/ 500kg |
| Rated output | 2.0±0.05mV/V |
| Accuracy class | C3 |
| Combined error | ±0.015%F.S. |
| Zero balance | ±0.02mV/V |
| Non-linearity | ±0.02%F.S. |
| Hysteresis | ±0.017%F.S. |
| Repeatability | ±0.015%F.S. |
| Temperature effect on sensitivity | ±0.008%F.S./10℃ |
| Temperature effect on zero | ±0.0125%F.S./10℃ |
| Input resistance | 380±10Ω |
| Output resistance | 350±5Ω |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15VDC |
| Compensated temp. range | -10~40℃ |
| Operation temp. range | -30~70℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| IP class | IP65 (Customizable) |
| Cable size | Φ5×3000mm (Customizable) |
| Material | Aluminum alloy |
| Nominal displacement | 0.6-0.9mm |

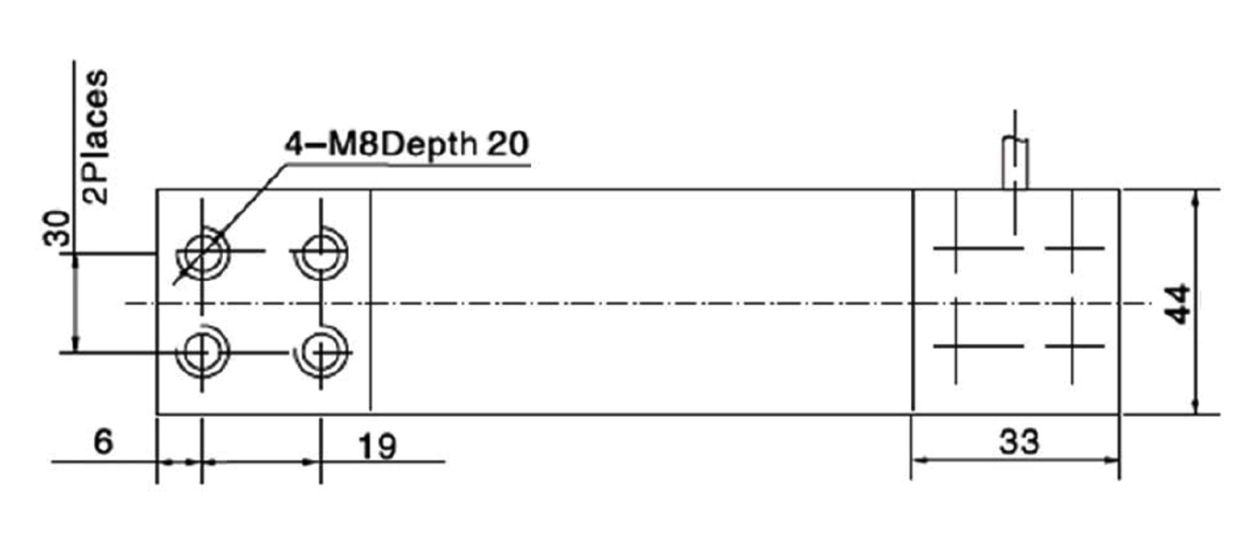

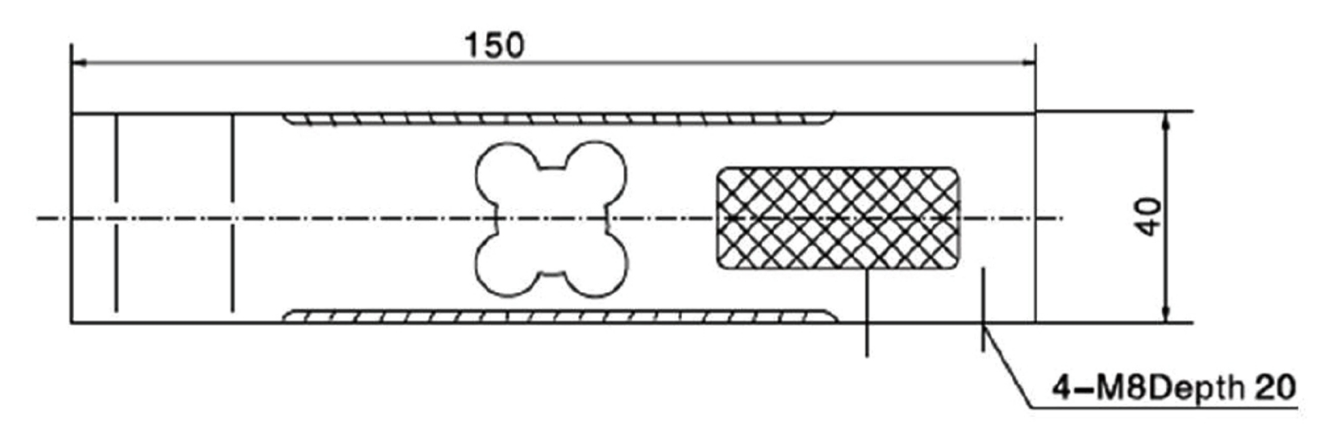

Dimensions (Unit:mm):

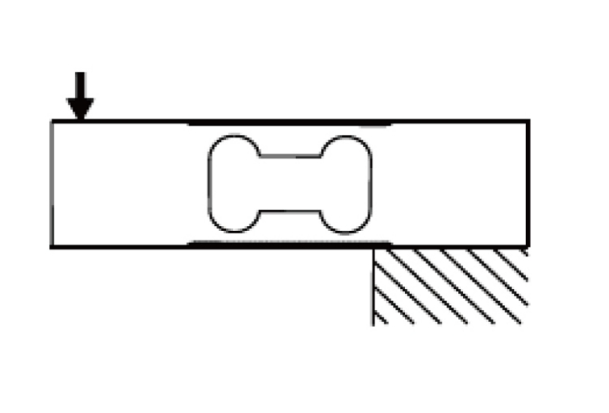

Load Direction:
