24 Bit LED RS232 Digital Weight Indicator For Lab Testing

Name: 24 Bit LED RS232 Digital Weight Indicator For Lab Testing
Brand: BRANZ
Price: 1 USD

China 24 Bit LED RS232 Digital Weight Indicator For Lab Testing wholesale

Brand Name : BRANZ

Model Number : H5000

Place of Origin : China

MOQ : 1pc

Payment Terms : L/C, T/T, Western Union,paypal

Supply Ability : 10000pcs

Delivery Time : 5~8days

Packaging Details : Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Customized : Customized

Display type : Led

Application : Lab testing

Measuring Range : ±5.0mV/V

A/D Conversion Speed : Highest 4800 (18bit)

Cable from Indicator to Load cells : <=50m

Resistance of Load Bridge : >100OHM

Speed of Output : 400,200,120,50,25,12.5,7.5Hz

Sensitivity : 2.0mV/V

Accuracy : 1/100000

Load cell connection : 4wires or 6 wires load cells

Highest Resolution : 24bit(50Hz)

Contact Now

24-bit LED RS232 Weighing Indicator For Lab Testing (H5000)

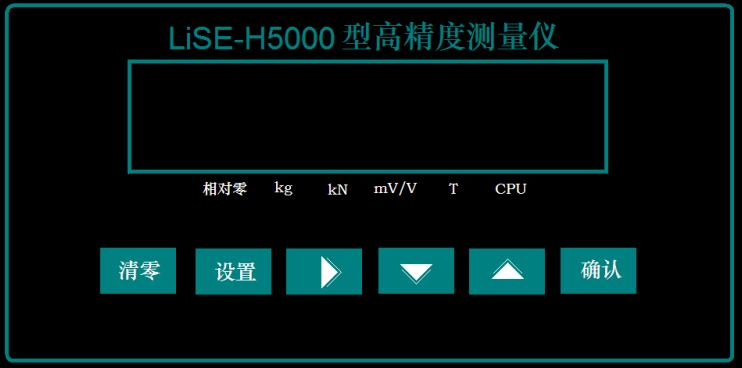

Operation panel:

24 Bit LED RS232 Digital Weight Indicator For Lab Testing

Key Features:

Serial port option:RS232

Unit selection as mV/V, kg,kN, Nm,t

With large LED display and plastic housing

Communication port, used for communication from indicator to computer, support custom high-speed protocol, Modbus and so on

High precison with good stability

High speed of sampling

Importing 24 bits modulus chips and special modular ground line seperated design to guarantee good stability.

Can be connected with 4 wires or 6 wires load cells with big measuring range

Mainly used for high precision data acquisition and verification assessment

Datasheet:

MODEL	UNIT	SPECIFICATIONS
Accuracy		1/100000
Resistance of Load Bridge	OHM	>100
Sensitivity Measuring Range	mV/V mV/V	2.0 ±5.0
Highest Resolution	Bits	24bit(50Hz)
A/D Conversion Speed	Samples/second	Highest 4800 (18bit)
Speed of Output	Hz	400,200,120,50,25,12.5,7.5
Cutoff Frequency of Digital Filtering	Hz	120,40,18,8,4,2,1,0.5,0.25
Excitation Voltage of Load Bridge	v	±10
Cable from Indicator to Load cells	m	<=50
Cable of communication	m	<=15
Linearity	%	±0.002
Temperature effect by 10 oC	ppm/10 ℃	10 ppm/10 oC
Communication port		Isolated RS232
Communication Protocol		Modbus
PC Software	V4.0	Digital Load Cells Measuring
Linear correction Points		10 setting points
Baud rate selection		9600 to 115200
Current consumption	mA	50
Operation Temperature	℃	-10...+40
Using Temperature	℃	-20...+60
Stocking Temperature	℃	-20...+60
Dimension (LWH)	mm	220×120×160

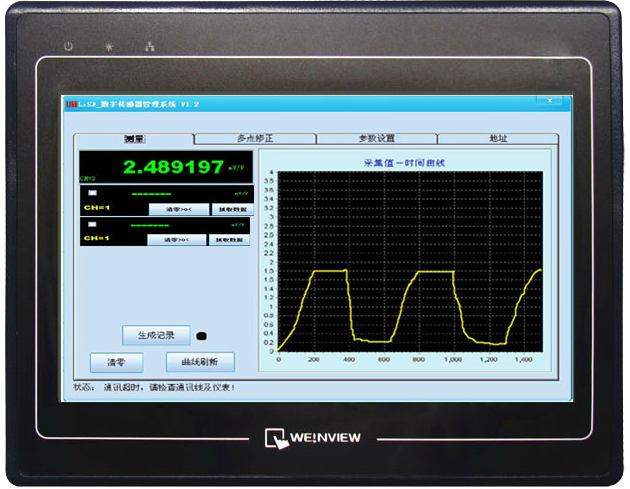

Control software:

24 Bit LED RS232 Digital Weight Indicator For Lab Testing
