Compression Load Sensor Module Beam Load Cell Module For Sale

Name: Compression Load Sensor Module Beam Load Cell Module For Sale
Brand: BRANS
Price: 100 USD

China Compression Load Sensor Module Beam Load Cell Module For Sale wholesale

Brand Name : BRANS

Model Number : WL-M1102

Certification : RoHS

Place of Origin : China

MOQ : 1pcs

Price : $100(1-9pcs); $95(10-29pcs)

Payment Terms : T/T, , L/C, Western Union, MoneyGram

Supply Ability : 100000pcs/year

Delivery Time : 5-7 work days

Packaging Details : Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Type : Weighing mounting kit

Capacity : 5/10/20/30/50/100/200/300/110/220/550/1100/2200/4400kg

Material : Stainless steel

Load Direction : Compression

HS Code : 9031809090

Warranty : 12 months

Application : Tank/hopper scales

Contact Now

Weighing Mounting Kits For Beam Load Cells - WL-M1102

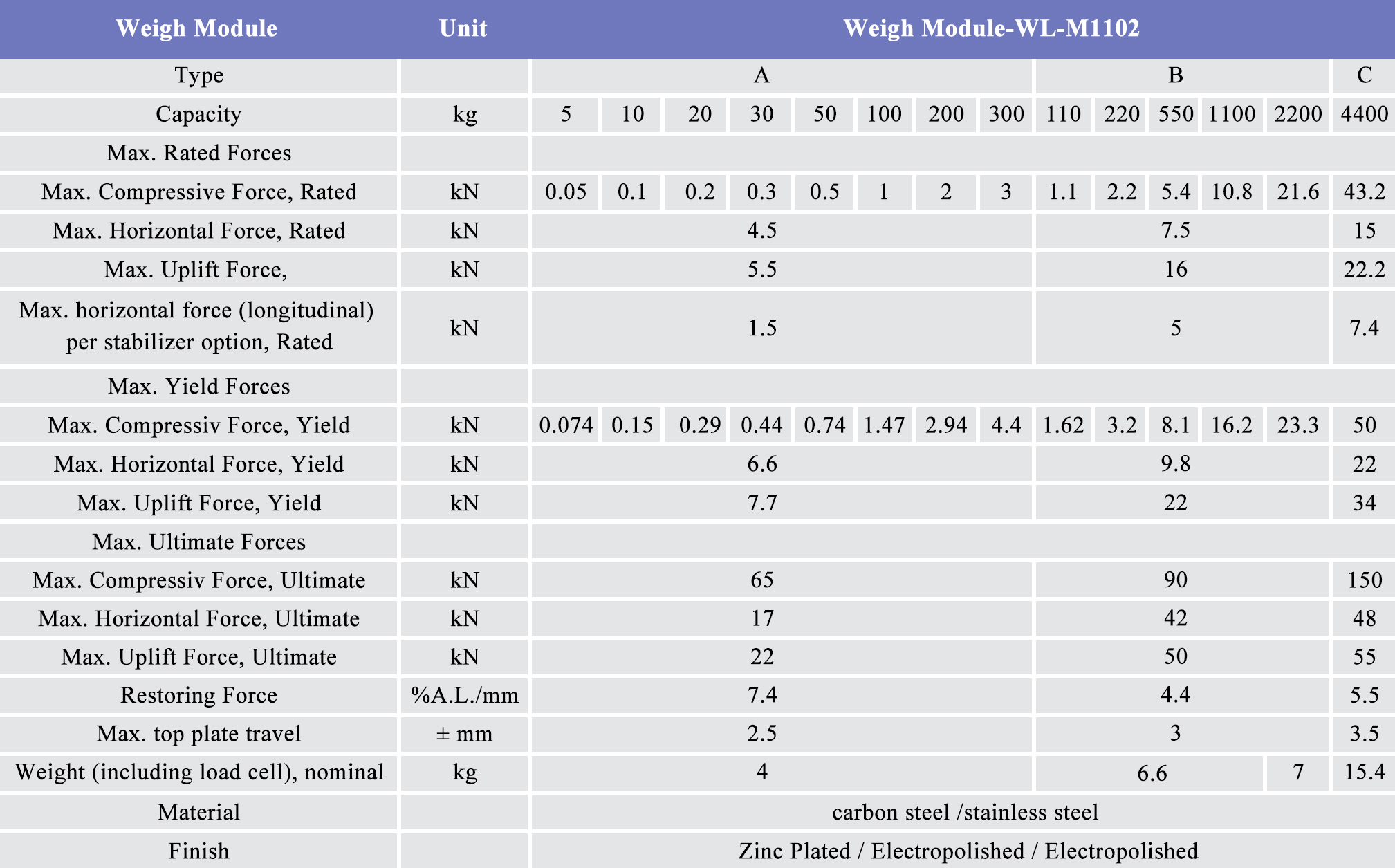

Specifications:

Compression Load Sensor Module Beam Load Cell Module For Sale

Features:

WL-M1102 weigh modules offer rugged construction and many features for easy installation and accurate and reliable tank weighing.

It's a popular solution for hopper scales and tank weighing systems, with its load cell and integrated mounting accessory, it can be bolted directly to the floor and the legs of vessel.

Standard lift-off bolt copes with tipping forces while vertical safety down-stop provides additional safety.

WL-M1102 weigh modules are also designed for dynamic-loading applications such as conveyors, mixers and blenders.

WL-M1102 weigh modules offer a wide measuring range from 5kg up to 4400kg, it normally takes 3 or 4 modules to work together, junction boxes and display units are also available at BRANS to form a complete weighing system.

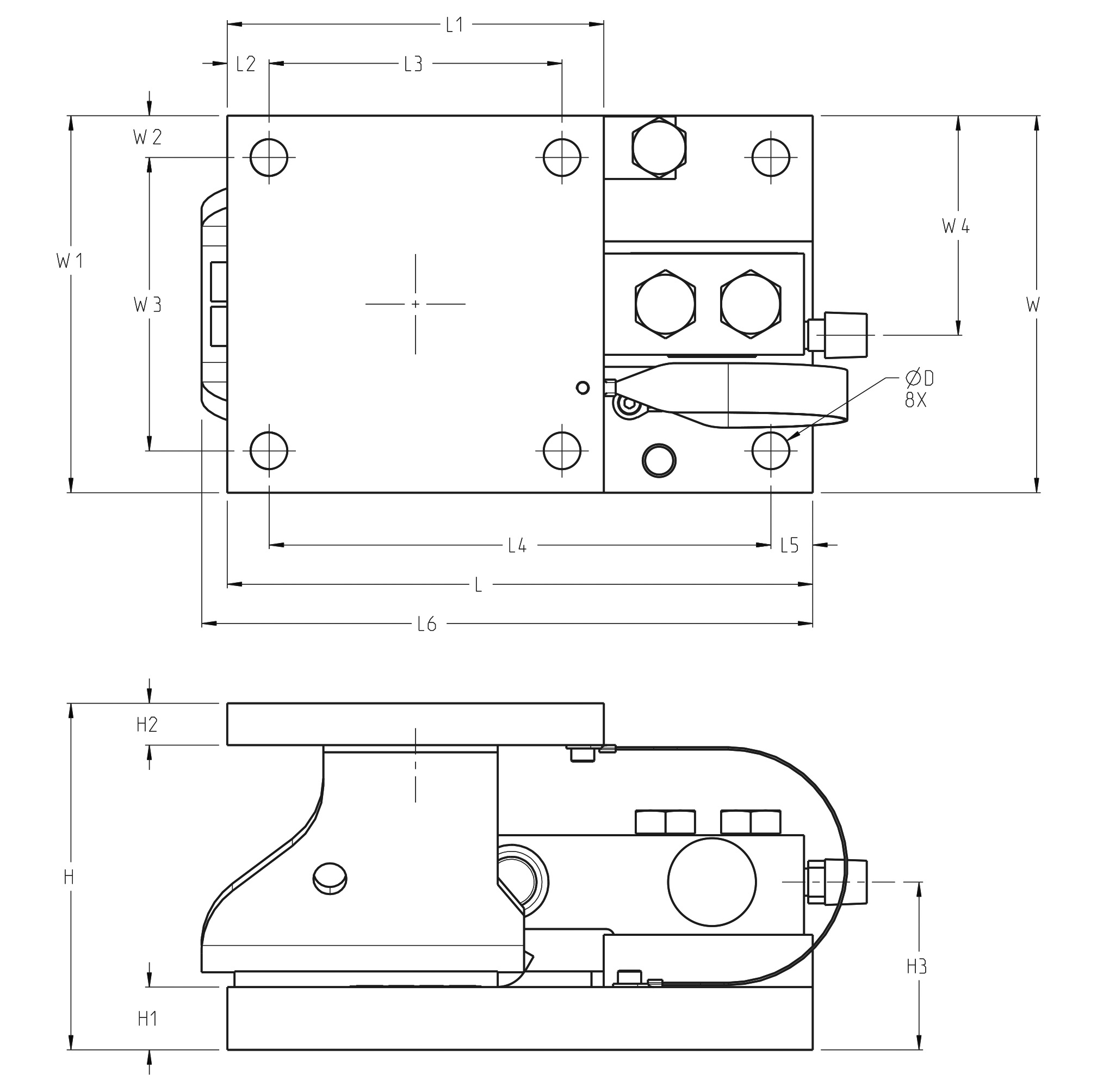

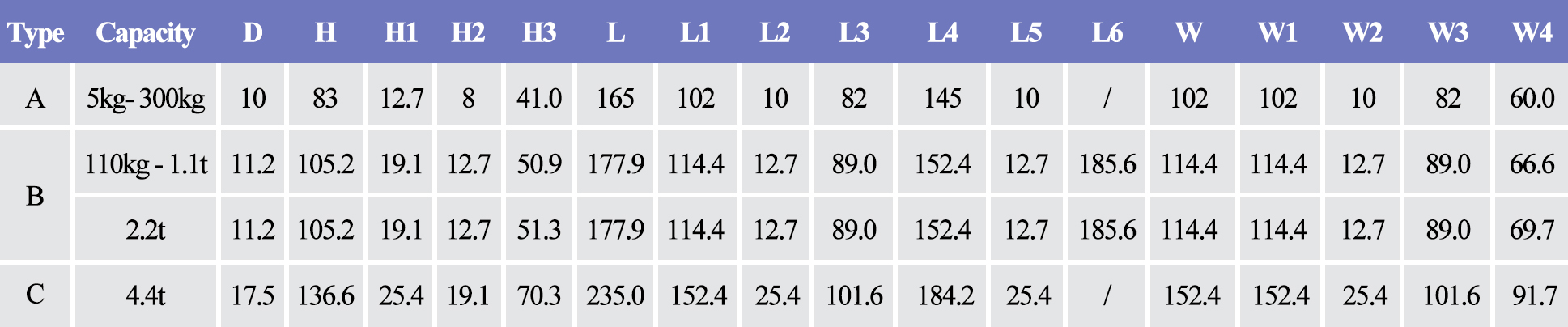

Dimensions (in mm):

Compression Load Sensor Module Beam Load Cell Module For Sale
